- Carte mère GIGABYTE X870 AORUS ELITE WIFI7 ICE WHITE (X870 A ELITE WF7 ICE 1.0)

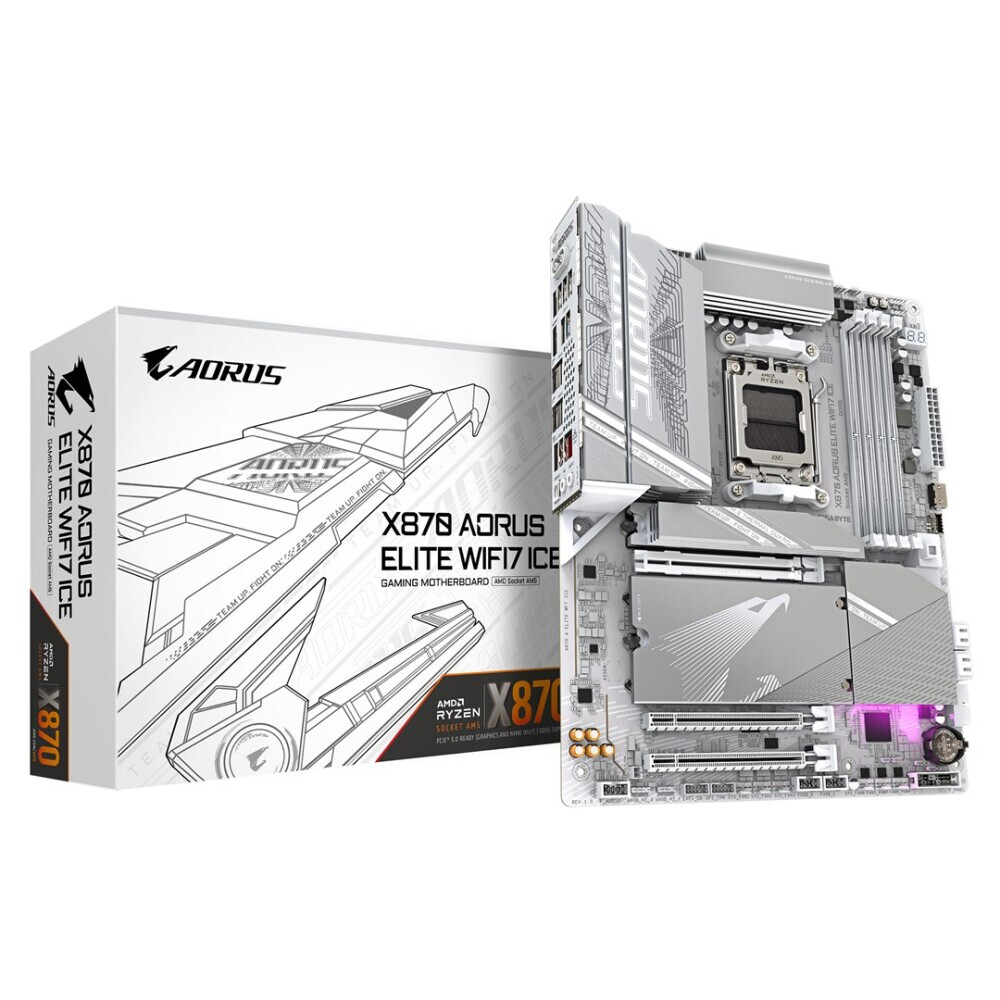

Carte mère GIGABYTE X870 AORUS ELITE WIFI7 ICE WHITE (X870 A ELITE WF7 ICE 1.0)
ID: 1790
Résumé du produit
- Prise: AM5
- Ensemble de puce (Chipset): AMD X870
- nombre demplacements de mémoire: 4
- Mode de mémoire: DDR5
- fentes d’expansion: PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E 3.0 x16, 4 x PCI-E M.2
- Ensemble de puces graphiques: Radeon Graphics
- connexion réseau: 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

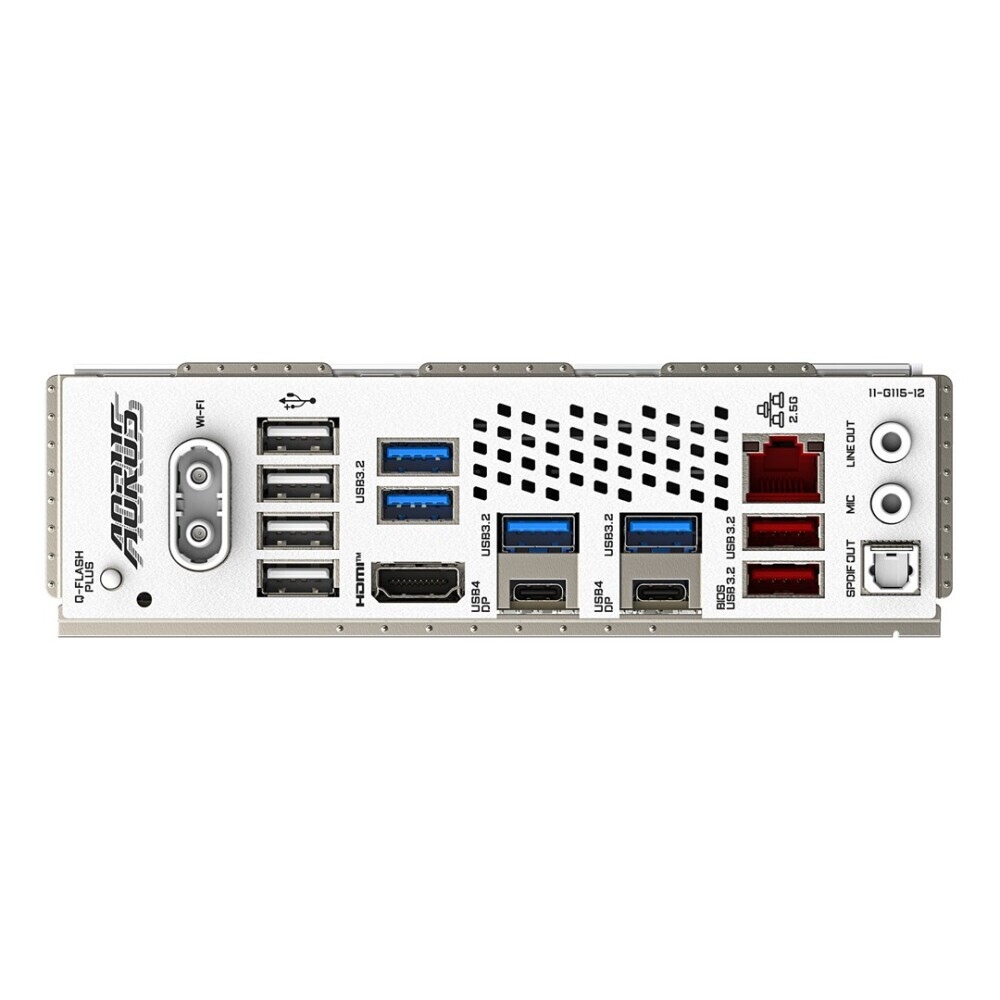

- nid dans le panneau arrière: 4 x USB 2.0, LAN, 2 x audio jacks, USB 3.2 Gen1, 2 x USB 3.2 Gen2, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optique)
- Lumière: Oui
- Formats: ATX
Spécifications complètes
283,70 €283,70 €
En stockPamata
Vendeur ........................................................................................................................................................................................................
Code vendeur ........................................................................................................................................................................................................
X870 A ELITE WF7 ICE 1.0
Prise ........................................................................................................................................................................................................
AM5
Ensemble de puce (Chipset) ........................................................................................................................................................................................................
AMD X870
Saskarnes
nid dans le panneau arrière ........................................................................................................................................................................................................
4 x USB 2.0, LAN, 2 x audio jacks, USB 3.2 Gen1, 2 x USB 3.2 Gen2, 2 x USB 4 Type-C, HDMI, RJ-45, S/PDIF (optique)
Contrôleur de disque
Contrôleur SATA ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
soutien RAID ........................................................................................................................................................................................................
0, 1, 10
Audio/Video
Vidéo intégrée ........................................................................................................................................................................................................
Oui
Ensemble de puces graphiques ........................................................................................................................................................................................................
Radeon Graphics
son ........................................................................................................................................................................................................
8 canaux (71)
fentes dextension
fentes d’expansion ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E 3.0 x16, 4 x PCI-E M.2
Type de slot M2 ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 processor is used.
1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
modes PCI-Express pris en charge ........................................................................................................................................................................................................
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Réseau
connexion réseau ........................................................................................................................................................................................................
2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Contrôleur réseau ........................................................................................................................................................................................................
Realtek RTL8125
mémoire
Mode de mémoire ........................................................................................................................................................................................................
DDR5
nombre demplacements de mémoire ........................................................................................................................................................................................................
4
Supplémentaire
Connecteur de ventilateur de boîtier ........................................................................................................................................................................................................
4 x 4-pin
Connecteur dalimentation ATX 12 V ........................................................................................................................................................................................................
2 x 8-pin
ports USB internes sur la carte mère ........................................................................................................................................................................................................
2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C
Connecteurs ARGB 5V sur la carte ........................................................................................................................................................................................................
3 x 3-pin
Connecteurs RGB 12V sur carte ........................................................................................................................................................................................................
4-pin
Lumière ........................................................................................................................................................................................................
oui
Formats ........................................................................................................................................................................................................
ATX
couleurs utilisées dans le formulaire ........................................................................................................................................................................................................
blanc
Fonction spéciale
Garantie ........................................................................................................................................................................................................
12/24 mois
Site web du fabricant ........................................................................................................................................................................................................
Chers clients, veuillez lire la description du produit sur le site officiel du fabricant avant d'effectuer un achat. Veuillez vérifier auprès du responsable du magasin en ligne pour confirmer les spécifications, la disponibilité en stock et le prix. Le fabricant se réserve le droit de modifier l'apparence, la composition ou les spécifications sans préavis.
